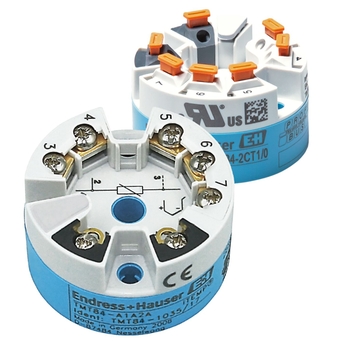

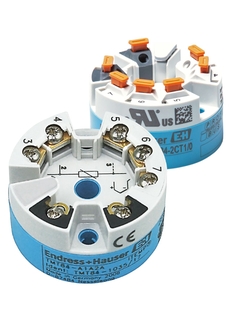

iTEMP TMT84
Temperature head transmitter

Transformation of sensor signals into standardized digital output signals for all industries

  • ©Endress+Hauser
  • ©Endress+Hauser
  • ©Endress+Hauser
  • ©Endress+Hauser

Unsurpassed reliability, accuracy and long-term stability in critical processes over all industries. The configurable transmitter not only transfers digital converted signals from RTD and TC sensors, it also transfers resistance and voltage signals using PROFIBUS® PA communication. High measurement point availability by means of sensor monitoring functions. Diagnostics information according to NAMUR NE 107. Optimization of the measurement accuracy by sensor-transmitter matching.

Benefits

  • Easy and standardized communication via PROFIBUS® PA Profile 3.02

  • Meets the EMC requirements as per NAMUR NE 21 and the recommendations of NE 89 with regard to temperature transmitters with digital signal processing

  • Straightforward design of measuring points in Ex-areas through FISCO/FNICO conformity in accordance with IEC 600079-27

  • Safe operation in hazardous areas thanks to international approvals such as FM IS, NI, CSA IS, NI as well as ATEX Ex ia, Ex nA (Ex nL)

  • High accuracy through sensor-transmitter matching

  • Reliable operation with sensor monitoring and device hardware fault recognition

  • Rapid no-tools wiring due to optional spring terminal technology

Field of application

  • 2 input channels and PROFIBUS® PA protocol for the conversion of input signals into digital output signals

  • The device stands out due to signal reliability, long-term stability, high precision and advanced diagnostics (important in critical processes)

  • For the highest level of safety, availability and risk reduction

  • Installation in flat-face terminal head as per DIN EN 50446

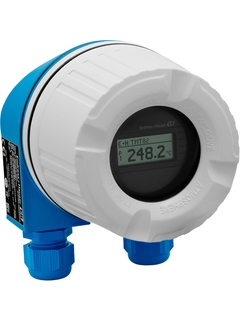

  • Optional installation in field housings even for use in Ex d areas - with mounting brackets for wall or pipe mounting

Features and specifications

Documents / Manuals / Software

Accessories / Spare parts

Predecessor / Successor

Predecessor: TMD834, iTEMP PA TMT184
