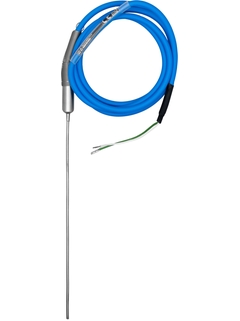

Product picture thermocouple cable probe TSC310

TSC310
Thermocouple sensor, cable probe

Cost efficient thermocouple sensor designed for use in many process and laboratory applications

TSC310
Please Wait (spinning wheel)
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

Specs at a glance

  • Accuracy

    class 2 acc. to IEC 60584

  • Response time

    t50 = 1 s
    t90 = 2 s

  • Max. process pressure (static)

    at 20 °C: 25 bar (363 psi)

  • Operating temperature range

    Type K:
    max. 1.100 °C
    (max. 2.012 °F)
    Type J:
    max. 750 °C
    (max. 1.382 °F)

  • Max. immersion length on request

    up to 100.000,00 mm (3.937,01'')

Field of application

The thermocouple (TC) cable probe is easy to install and provide a high operational safety due to reliable and accurate temperature measurement in common processes. The probe is specially suited to temperature measurement in machinery, laboratory equipment and plants in gaseous or liquid medium like air, water, oil, etc. Without additional thermowell the probe sheath is directly in contact with the process medium. This enables to detect rapid temperature changes fast and accurate.

The resistance thermometer is specially suited to temperature measurement in machinery, power stations and plants in gaseous or liquid media like air, steam, water and oil.

Benefits

  • High flexibility through user-specific insertion lengths and variable process connections

  • Fast response time

  • Different types of thermocouples according to DIN EN 60584 and ASTM E230/ANSI MC96.1: type J (Fe-CuNi), type K (NiCr-Ni)

  • Types of protection for use in hazardous locations: Intrinsic Safety (Ex ia) and non-Sparking (Ex nA)

  • NEPSI approval (Ex ia)
