Vibronic
Point level detection
Liquiphant FTL31

Point level switch for liquids in compact design with stainless steel housing

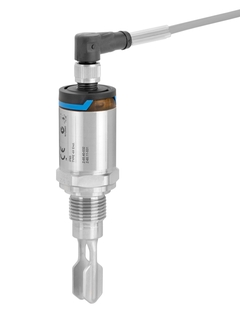

  • Liquiphant FTL31 ©Endress+Hauser

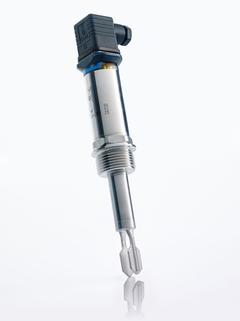

  • Liquiphant FTL31 ©Endress+Hauser
  • Liquiphant, Liquipoint, Cerabar, Ceraphant - A strong team for standard level and pressure applications

  • Vibronic measuring principle

  • Liquiphant with permanent function check is the safe choice for point level detection in liquids

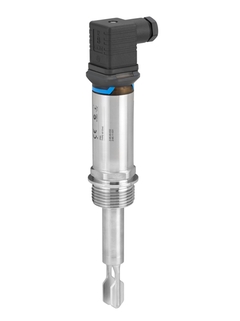

  • Liquiphant FTL31 ©Endress+Hauser

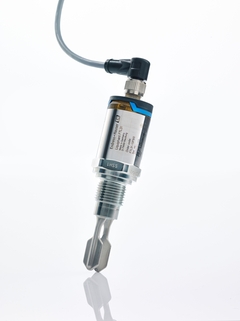

  • Liquiphant FTL31 ©Endress+Hauser

Liquiphant FTL31 is a point level switch for liquids. The FTL31 is designed for industrial applications in all industries, mainly the machinery industry. The Liquiphant is used for overfill prevention or pump dry-run protection in cleaning and filter systems as well as in cooling and lubrication vessels.
Compact:
- Smallest vibronic sensor in the market
Safe:
- Continuous self-monitoring
- Reliable switching independent of media properties
Easy:
- No calibration or adjustment
- Plug & play

Benefits

  • Designed according to highest requirements to quality and environmental sustainability. The self-monitoring Liquiphant offers safe switching also in case of power supply loss

  • Independent of changing media properties an accurate switching point is offered

  • A real plug & play sensor is offered without any need for adjustment even with changing media. Measurement is unaffected by conductivity, build-up, turbulence, flows or air bubbles

  • No calibration is required, no specific know-how or tools (e.g. software) necessary

  • Robust design made of stainless steel (316L) assures highest durability

  • A modular design offers different process temperatures and the widest variety of process connections and accessories in the market to fit every application

  • No mechanically moved parts, free of maintenance

Field of application

Point level switch in compact design with stainless steel housing.

  • Process connections: Threads

  • Temperature: -40 to +150°C (-40 to +302°F)

  • Pressure: -1 to +40bar (-14.5 to 580psi)

  • Surface roughness: 3.2µm

  • Overfill prevention and leakage detection WHG, marine approvals, final inspection report

Features and specifications

Documents / Manuals / Software

Accessories / Spare parts

Predecessor / Successor

Predecessor: Liquiphant T FTL20, Liquiphant T FTL260
