Conductivity compact device

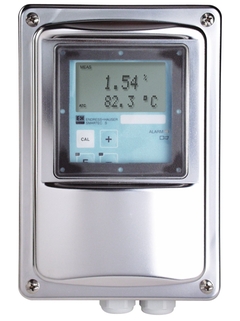

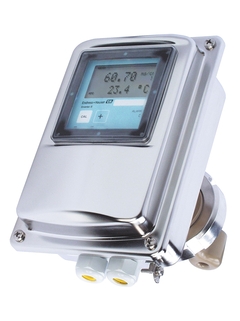

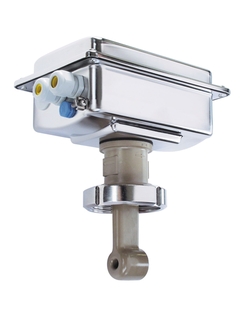

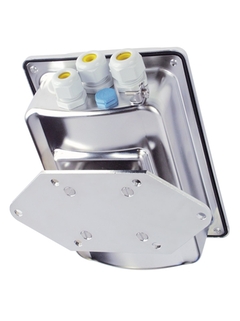

Smartec CLD132

Toroidal conductivity measuring system for hygienic applications

  • ©Endress+Hauser
  • ©Endress+Hauser
  • ©Endress+Hauser
  • ©Endress+Hauser
  • The conductivity of a liquid can be measured using the conductive or toroidal measuring principles. This video shows what it is about and how these measuring principles work.

Smartec CLD132 is a measuring system for inductive conductivity in the food & beverage industry. The combination of a transmitter and a sensor is interference-free, easy-to-use and features a hygienic design that protects your products and processes from contamination. Moreover, Smartec CLD132 is equipped with a stainless steel temperature sensor that gives you an ultrafast temperature response for reliable measurement in separation applications.

Benefits

  • Engineered for quick temperature response

  • Hygienic design avoids recontamination

  • Suitable for cleaning-in-place (CIP) and sterilization-in-place (SIP)

  • Low risk of soiling due to encapsulated sensor

Field of application

Smartec CLD132 measures toroidal conductivity particularly in food & beverage applications, where a fast temperature response is needed, such as:

  • Alkaline/acid concentration control in remaking

  • Phase separation of product/water and product/product mixtures in pipe systems

  • Monitoring and control of bottle cleaning systems

  • Product monitoring

  • CIP system control

Smartec CLD132 features the following protocols and interfaces:

  • 0/4...20mA

  • HART

  • PROFIBUS DP

  • PROFIBUS PA

Features and specifications

Documents / Manuals / Software

Accessories / Spare parts

Predecessor / Successor

Predecessor: CLD130, CLS51
