Absolute and
gauge pressure
Cerabar PMP131

Cost-effective pressure transducer with metal sensor for measurement in gases, steam or liquids

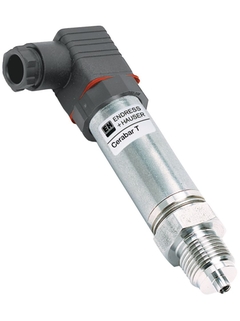

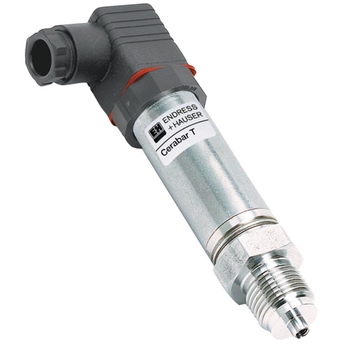

  • Cerabar PMP131 ©Endress+Hauser

The Cerabar PMP131 is a price-attractive compact pressure transmitter with piezoresistive sensor with metallic measuring diaphragm for absolute and gauge pressure measurement.

Benefits

  • Compact pressure transducer

  • Overload-resistant sensor up to 400bar

  • Small flush mounted process connections

Field of application

Pressure transducer for measuring absolute pressure and gauge pressure in gases, vapors, liquids and dusts.

  • Process connections: Threads

  • Process temperature: -25 to +70°C (-13 to +158°F)

  • Pressure:-1/0 up to +400bar (-15/0 up to +6000psi)

  • Accuracy: ±0.5%

  • International explosion protection certificates, SIL, marine approvals

Features and specifications

Documents / Manuals / Software

Accessories / Spare parts

Predecessor / Successor

Predecessor: PMS131

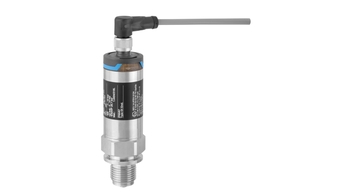

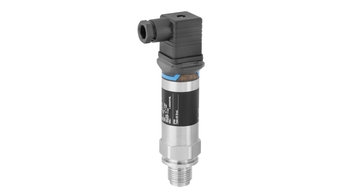

Successor: Cerabar PMP21, Cerabar PMP11
