Electromagnetic flowmeter

The cost-effective limit switch for reliable and repeatable flow monitoring

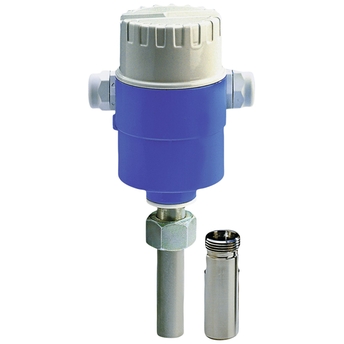

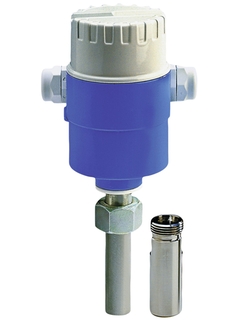

  • Electromagnetic flowmeter - Magphant ©Endress+Hauser
  • The Electromagnetic Flow Measuring Principle

Magphant is the compact, universally usable limit switch with high repeatability for water applications in Utilities. The measuring device for reliable and cost-effective flow monitoring offers in addition to safe operation an easy use.


  • High plant availability – reliable flow information

  • Energy-saving flow measurement – no pressure loss due to cross-section constriction

  • Maintenance-free – no moving parts

  • Process safety – reliable monitoring even with empty piping and device self-monitoring

  • Product safety – integrated testing to check correct functioning of the electronics

  • Easy operation – potentiometer setting of full-scale value

Field of application

  • The measuring principle is virtually independent of pressure, density, temperature and viscosity

  • Universally usable for all water applications in Utilities.

Device properties

  • Compact, space-saving design

  • Nominal diameter: DN 15 to 2000 (1/2 to 80")

  • Applicable for steel or plastic pipes

  • Switch-point setting via rotary switch

  • Current output and relay output


Features and specifications

Documents / Manuals / Software

Accessories / Spare parts

Predecessor / Successor

Predecessor: DI12, DTI120, DTI130
