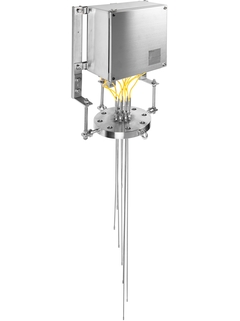

Multipoint thermometer iTHERM TMS01 MultiSens Flex

iTHERM MultiSens Flex TMS01 Multipoint RTD/TC thermometer

Modular direct contact TC and RTD multipoint thermometer for oil, gas and petrochemical applications

TMS01
Please Wait (spinning wheel)
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

Specs at a glance

  • Accuracy

    class 2 acc. to IEC 60584
    ASTM E230 and ANSI MC 96.1

  • Response time

    depending on configuration:
    TC:
    t50 = 2 s
    t90 = 5 s
    RTD:
    t50 = 0,8s
    t90 = 2s

  • Max. process pressure (static)

    at 20 °C: 100 bar (1450 psi)

  • Operating temperature range

    Type K:
    max. 1.150 °C
    (max. 2.102 °F)
    Type J:
    max. 920 °C
    (max. 1.688 °F)
    Type N:
    max. 1.150 °C
    (max. 2.102 °F)
    Type T:
    max. 370 °C
    (max. 698 °F)

  • Max. immersion length on request

    up to 30.000,00 mm (1181'')

Field of application

By complying with the highest safety standards, iTHERM TMS01 can be customized for various applications. Bendable into a 3D layout, it provides a complete temperature profile just by using one nozzle. The device is configurable with or without thermowells for optimal response times, mechanical strength or sensors replaceability. It is available either with TC or RTD technology or with our iTHERM StrongSens.

  • Petrochemical industry

  • Oil & Gas industry

  • Heavy Chemical processes

Benefits

  • Easy-to-use device with modular and flexible design, ready to be installed either for direct contact measurements or by means of sensor-dedicated protecting tubes. The device can also be installed in thermowells already in place

  • Infinite layouts of 3D sensors distribution for any desired process monitoring configuration

  • High degree of customization thanks to a modular product design for easy installation, process integration and maintenance

  • High degree of insert process compatibility as per standard IEC 60584, ASTM E230 and IEC 60751

  • On-board electronic heat protection for highest product durability

  • Compliance to different types of protection for use in hazardous locations for easy process integration
