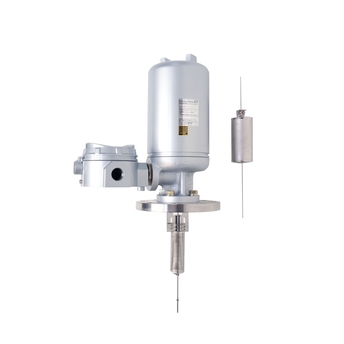

Magnet Level Switch MPC2
Displacement technology level switch
The MPC2 level switch is a displacement type instrument for installation on a tank. It provides alarm contact output of max. 4 points while activating micro switches with magnet. The switching mechanism is designed to operate these contacts independent of one another. The instruments could therefore emit high and low level alarm alarms.
Spring type micro switch holders assuring proper operations unaffected by vibration of vessels
Multi-point control (4 points maximum) possible with a single product.
Resistance to high temperature and high pressure
Simple construction featuring stable operation
Explosion-proof type is also available
Field of application
Ambient temperature: -10 to +60°C (14 to +140°F)
Accuracy: ±3mm (± 0.12")
