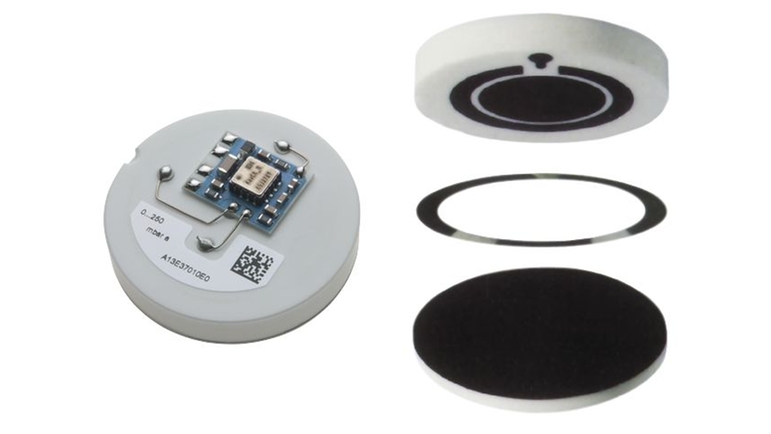

Ceraphire ceramic cell
Endress+Hauser sensor technology
Ceramic is one of the hardest materials in the world. The Endress+Hauser capacitive ceramic sensor Ceraphire contains of 99.9% pure ceramic and is a dry measuring cell without filling fluids. The sensor offers high accuracy and is highly corrosion and abrasion resistant. Furthermore the Ceraphire offers best fit for vacuum applications, also pressure peaks up to 40 times of the sensor nominal range do not impact the measurement.
©Endress+Hauser
Ceraphire ceramic sensor guarantees high availability of measurement signals and high overload protection
Corrosion-resistant
Abrasion-resistant
No hydrogen diffusion
No diaphragm damage
Dry cell / no media pollution
No need for expensive alloys diaphragm materials
F
L
E
X
Simple products
Easy to select, install and operate
Technical excellence
Simplicity
Standard products
Reliable, robust and low-maintenance
Technical excellence
Simplicity
High-end products
Highly functional and convenient
Technical excellence
Simplicity
Specialized products
Designed for demanding applications
Technical excellence
Simplicity
FLEX selections
Technical excellence
Simplicity
Fundamental selection
Meet your basic measurement needs
Technical excellence
Simplicity
Lean selection
Handle your core processes easily
Technical excellence
Simplicity
Extended selection
Optimize your processes with innovative technologies
Technical excellence
Simplicity
Xpert selection
Master your most challenging applications
Technical excellence
Simplicity
Compare
Accuracy
0.075% of individual sensor,
Process temperature
–25...+150°C
Pressure measuring range
100mbar...40bar
Process pressure / max. overpressure limit
60 bar (900 psi)
Material process membrane
Ceramic
Measuring cell
100 mbar...40 bar
Accuracy
Standard 0.1%
Process temperature
-20°C...130°C
Pressure measuring range
100 mbar...40 bar
Process pressure / max. overpressure limit
60 bar (900 psi)
Main wetted parts
Ceraphire
Max. measurement distance
400 m (1312 ft) H2O
Material process membrane
Ceramic
Measuring cell
100 mbar...40 bar
Back
Product is getting phased out
New alternatives available
Phase out policy
Endress+Hauser are committed to the long term support of all our products
We undertake support and service for our products for a period of ten years after notice of product withdrawal (until spareparts are not available any more)
However we reserve us the right to offer alternative solutions including replacement products if deemed more appropriated.
Product status
Product root
PMC51
Name
Absolute and
gauge pressure

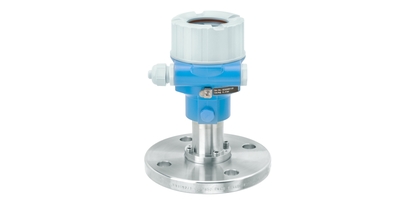

Cerabar PMC51
Product status
Phase out date
12/2024
Order stop
6/2027
Spare sensor until
not applicable
Calibration until
not applicable
Spares available
7/2030
Repair until
7/2030
Maintenance advice
Accuracy
Standard: 0.05%
Process temperature
-40°C...150°C
Pressure measuring range
100mbar...40bar
Process pressure / max. overpressure limit
60bar (900psi)
Main wetted parts
Ceraphire ceramic
Max. measurement distance
400m (1312ft) H2O
Material process membrane
Ceramic
Measuring cell
100 mbar...40 bar
Back
Product is getting phased out
New alternatives available
Phase out policy
Endress+Hauser are committed to the long term support of all our products
We undertake support and service for our products for a period of ten years after notice of product withdrawal (until spareparts are not available any more)
However we reserve us the right to offer alternative solutions including replacement products if deemed more appropriated.
Product status
Product root
PMC71
Name
Absolute and
gauge pressure
Cerabar PMC71
Product status
Phase out date
12/2024
Order stop
6/2027
Spare sensor until
not applicable
Calibration until
not applicable
Spares available
7/2030
Repair until
7/2030
Maintenance advice

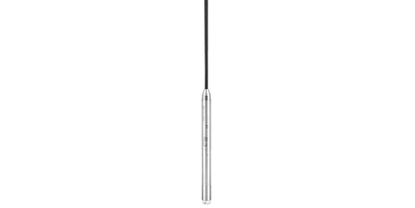

Accuracy
0.2%
Process temperature
-10°C...70°C
Pressure measuring range
100 mbar...20 bar
Main wetted parts
Diameter 22 mm and 42 mm: Seal, 316L, Ceramic
Max. measurement distance
200 m H2O
Measuring cell
100mbar...20bar
