Specs at a glance
-
Accuracy
+/-1 mm (0.04 in)
-
Process temperature
-196 … +450 °C (-321 … +842 °F)
-
Process pressure / max. overpressure limit
Vacuum...160 bar (2320 psi)
-
Max. measurement distance
80 m (262 ft)
-
Main wetted parts

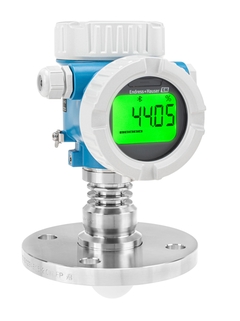

316L or PTFE (clad 316L flanges)
Field of application

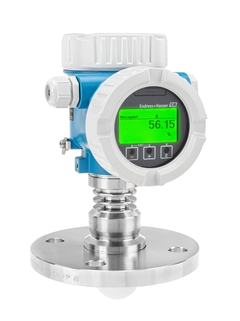

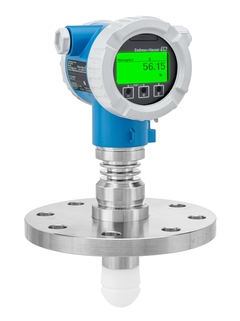

Micropilot FMR62B is part of the new generation of 80 GHz radar sensors. It is used for continuous non-contact level measurement in challenging liquid applications. It masters process requirements like high temperatures, high process pressure as well as changing media. Testing concepts for SIL-locking and proof tests reduces the risk of systematic errors. Heartbeat Technology offers verification and monitoring functions to identify anomalies for increased safety and productivity.
The Micropilot FMR62B is suitable for free-space applications up to 80m and offers high beam focusing for vessels with many internal fittings.
Process connections: Flanges

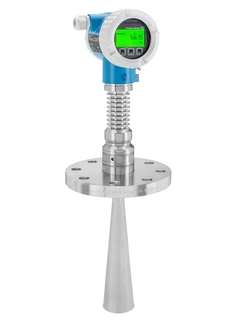

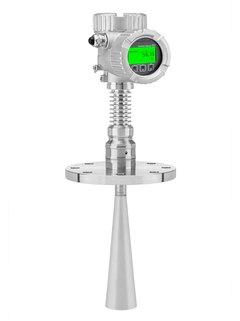

Temperature: –196 to +450 °C (-320 to +842°F)
Pressure: –1 bis +160 bar (-14.5 to 2320.6 psi)
Maximum measuring range: 80 m (262.5 ft)
Accuracy: ±1 mm (0.04 in)
W-band: 80 GHz
International explosion protection certificates, overfill prevention WHG, SIL, marine approval, 5- or 10-point factory calibration certificate
Benefits
Increased productivity thanks to process monitoring, verification, and diagnostics in the running process with Heartbeat Technology
Safety by design: Device development according to IEC 61508 for SIL 2 and SIL 3 applications (e.g. in homogeneous redundancy)
Reduction of systematic errors through guided SIL-locking, verification and proof testing
Easy handling through intuitive operation and wizards, for commissioning and verifications
Easier troubleshooting through recommended actions shown on the display
