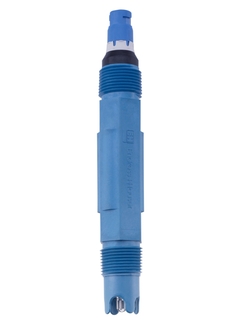

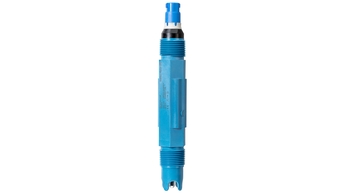

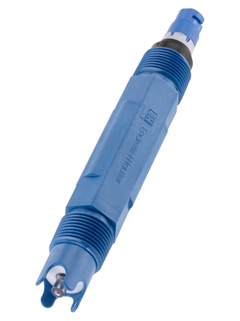

Digital ORP sensor
Orbipac CPF82D
Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.
Memosens compact electrode for wastewater, primaries and metal
Orbipac CPF82D is the digital simple solution for ORP measurement in harsh environments. Its large, dirt-repellent PTFE diaphragm guarantees low maintenance while its integrated assembly saves space and time during flow or immersion installation. Thanks to Memosens digital technology, CPF82D combines maximum process and data integrity with simple operation. It resists corrosion and moisture, enables lab calibration and simplifies predictive maintenance.
Additional components
-
Benefits
Suitable for flow and immersion installation
Long-time stable: Second electrolyte bridge for better protection against electrode poisoning ions such as S2- or CN- ions
Robust polymer housing protects against mechanical damage
Maximum process safety...
-
Field of application
Orbipac CPF82D is the robust ORP sensor for treatment of industrial water and wastewater and for processes in mining industries. It monitors:
Inlet and outlet
Neutralization
Flotation
Leaching
