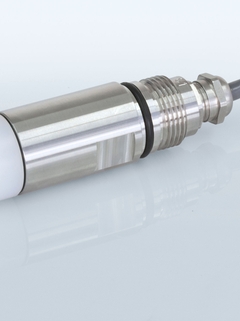

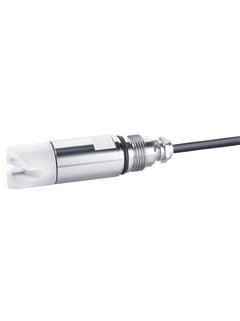

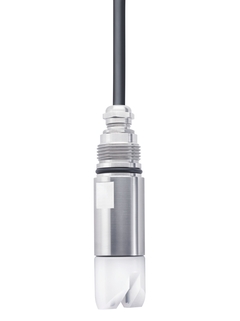

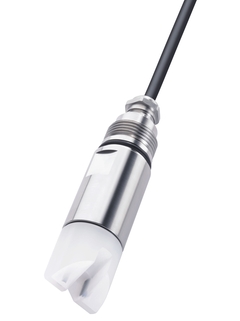

Glass-free absorption sensor
OUSAF11

NIR/VIS absorption sensor for phase detection and suspended solids

OUSAF11 is a glass-free sensor for the inline detection of changing phases and suspended solids. Insert it in pipes and vessels to minimize product losses and to ensure the purity of your products. You may also apply it as an immersion sensor in open tanks and basins for efficient effluent monitoring. Its glass-free, hygienic design guarantees the highest safety of your products. OUSAF11 withstands high operating temperatures and aggressive media, making it suitable for all industries.

Sizing
Pricing after login and configuration

Compare

Quick selection

Choose from our suggested options

<%label%>
-- selected coding

-- selected label
<%label%>
Looking for more options? Please use the individual configurator to continue.
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Looking for more options? Please use the individual configurator to continue.
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

Optional add-ons

Please use the individual configurator to continue.

Individual configuration

Continue your selection from all possible options

Configure

Additional components

Multichannel transmitter
Liquiline CM44P

Multiparameter device for process photometers and Memosens sensors
More information
Compare

Benefits
Highest safety for your products thanks to glass-free, hygienic design
Cost savings and reduced product loss thanks to fast interphase detection
Low-maintenance sensor with long service life and stable operation
Flexible installation: Sensor features...

Show more
Highest safety for your products thanks to glass-free, hygienic design
Cost savings and reduced product loss thanks to fast interphase detection
Low-maintenance sensor with long service life and stable operation
Flexible installation: Sensor features insertion (with Triclamp and Varivent connection) and immersion (with holder and assembly system Flexdip CYA112 and CYH112)
Robust sensor resists aggressive chemicals and fouling
Suitable for cleaning-in-place (CIP) and sterilization-in-place (SIP)
FDA and 3-A approval

Show less

Field of application
The OUSAF11 sensor detects phase separations and suspended solids in :

Food & Beverages:
- Milk detection in CIP solutions
- Phase separation in dairies and breweries
- Product loss detection in effluent

Primaries, mining and metals:
- Suspended solids...

Show more
The OUSAF11 sensor detects phase separations and suspended solids in :

Food & Beverages:
- Milk detection in CIP solutions
- Phase separation in dairies and breweries
- Product loss detection in effluent

Primaries, mining and metals:
- Suspended solids measurement

Show less

Features and specifications

Back

Details

Measuring principle

NIR absorbance
Application

Suspended solids measurement, product interface detection, milk detection, produkt loss detection
Characteristic

VIS/NIR absorption
Measurement range

0 to 3 AU
0 to 6 OD (depending on optical path length)
Design

Glassfree, hygienic sensor
Material

Sensor head: FEP
Sensor body: stainless steel 316L
O-Ring: EPDM
Process temperature

0 to 90 °C (32 to 194 °F) continuous
Max. 130 °C (266 °F) for 2 hours
Process pressure

Max. 10 bar abs at 20 °C
(Max. 150 psi at 68 °F)
Connection

Thread G1
NPT 1" thread
Tri-Clamp 2"/2.5"/3"
VARIVENT N DN40-125
Ingres protection

IP 67
IP 68 when mounted with CYH112
Additional certifications

FDA, 3-A
