Bar stock thermowell TW47

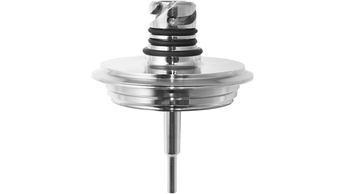

Product picture of: Bar stock thermowell TW47

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Features and specifications

Back

Details

  • Measuring principle

    Bar stock Thermowell

  • Characteristic / Application

    for TR 47, hygienic design (3-A)

  • Head connection

    external thread:

    G3/8"

  • Maximum standard immersion length

    650 mm (25,59")

  • Process connection

    hygienic weld-in:

    cylindrical, spherical

  • Thermowell root diameter

    13 mm (0,51")

  • Medium contact material

    1.4435 (316L)

  • Wetted part finishing (Ra)

    < 0.4 µm (15.75 µin)

    < 0.8 µm (31.50 µin)

  • Tip shape

    reduced

  • Temperature range

    -200...650 °C (-328...1.202 °F)

  • Max. process pressure (static)

    170 bar (2466 psi)

  • Max. process pressure at 400 °C

    130 bar (1885 psi) bei 150°C

  • Measuring principle

    Bar stock Thermowell
