Source Container FQG60 - Radiometric measurement

Radiometric
Level/density measurement

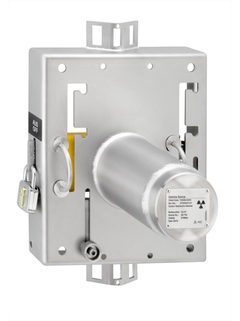

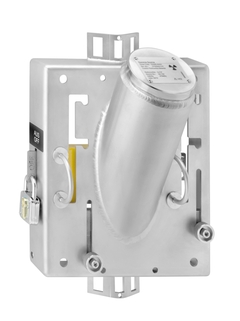

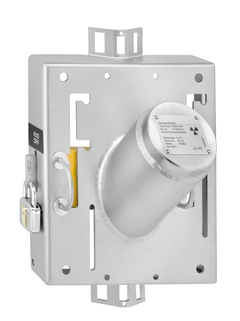

Source Container FQG60

Radiation source container with radiation source insert with manual switch-on and switch-off

FQG60
Please Wait (spinning wheel)
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

Specs at a glance

  • Process temperature

    Any

  • Process pressure / max. overpressure limit

    Any

  • Main wetted parts

    Non-contact

Field of application

The FQG60 source container is designed to hold the radioactive source during radiometric point level detection, continuous level and density measurement. The radiation is emitted almost unattenuated in one direction only, and is damped in all other directions. This guarantees highest safety for the personnel and a reliable measurement.

Designed to hold the radioactive source during radiometric point level detection, level measurement and density measurement. Radiation is emitted almost unattenuated in one direction only, and is damped in all other directions.

  • Activity: 137Cs to 1.1GBq (30mCi)

  • Temperature: No limitation (non-invasive, extraneous)

  • Pressure: No limitation (non-invasive, extraneous)

Benefits

  • High safety level thanks to highest classification for the source supplied (DIN 25426/ISO 2919, typically classification C66646) and safe and easy source replacement

  • Reliable measurement due to small-size, lightweight container which provides optimized screening

  • Compact, easy-to-mount device with the possibility of various angles of emission for optimum adaptation to the application

  • Manual switching on/off and padlock to fix switching positions (on/off), or snap hook to fix switching position; on-switch status easily identified

  • Integrated mounting device for density measurement on pipes

  • Optional: Calibration plate for quick and easy density recalibration
