Radiometric level and density measurement Gammapilot FMG50

Gammapilot FMG50 stainless steel housing ©Endress+Hauser

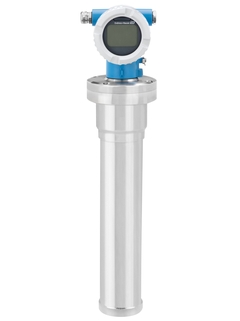

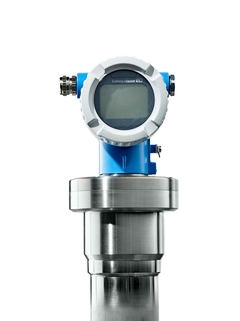

Gammapilot FMG50 aluminum housing ©Endress+Hauser

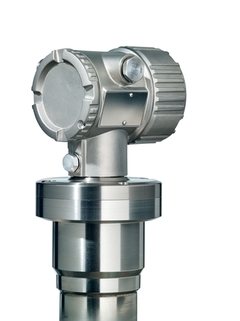

Gammapilot FMG50 aluminum housing ©Endress+Hauser

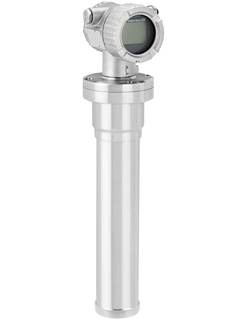

Gammapilot FMG50 stainless steel housing ©Endress+Hauser

The animation shows the radiometric measuring principle

Compact transmitter for point level detection, continuous level, interface and density measurement

The Gammapilot FMG50 compact transmitter is designed for non-contact point level detection, continuous level, interface and density measurement in liquids, solids, suspensions or sludges. As the first true 2-wire loop powered compact transmitter it minimizes engineering and installation efforts.

This product is not available in this market.

  • Benefits

    • First real 2-wire loop-powered compact transmitter minimizes engineering and installation efforts

    • Reduced installation and engineering costs thanks to the first 2-wire loop powered compact transmitter

    • Increased plant safety, efficiency and availability...

  • Field of application

    • For all kinds of process vessels, like reactors, autoclaves, separators, acid tanks, cyclones

    • For liquids, solids, suspensions or sludges etc.

    • Extreme measuring conditions, for example corrosion, abrasion, viscosity, toxicity

    • Process temperature: No...

Details

  • Measuring principle

    Radiometric Limit

  • Characteristic / Application

    Compact transmitter for extreme process conditions (temperature, pressure);

    Non-contact measuring technique

  • Specialities

    Heartbeat Technology,

    SIL 2/3 according to IEC 61508,

    Bluetooth® commissioning, operation and maintenance with the SmartBlue App

  • Supply / Communication

    2-wire loop powered

  • Ambient temperature

    -40 °C...+80 °C,

    (-40 °F...+176 °F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Main wetted parts

    Non-contact

  • Process connection

    Non-contact

  • Sensor length

    PVT scintillator:

    200 mm...400 mm,

    NAI scintillator:

    50 x 50 mm,

    50 x 100 mm

  • Communication

    4...20 mA HART

  • Safety approvals

    SIL 2/3

  • Options

    Display

  • Components

    Isotope: FSG60, FSG61,

    Source container: FQG60, FQG61, FQG62, FQG63, FQG66,

    Mounting accessories: FHG61

  • Measuring principle

    Radiometric

  • Characteristic / Application

    Compact transmitter for extreme process conditions (temperature, pressure);

    Non-contact measuring technique

  • Interface measurement

    Interfaces liquid / liquid also with emulsion layers

    Interfaces liquid / solid

  • Specialities

    Heartbeat Technology,

    SIL 2/3 according to IEC 61508,

    Bluetooth® commissioning, operation and maintenance with the SmartBlue App

  • Supply / Communication

    2-wire loop powered

  • Accuracy

    +/-1%

  • Ambient temperature

    -40 °C...+80 °C,

    (-40 °F...+176 °F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Main wetted parts

    Non-contact

  • Process connection

    Non-contact

  • Sensor length

    PVT scintillator

    400 mm...3000 mm,

    >3000 mm cascade mode

  • Max. measurement distance

    Unlimited measuring range,

    Cascade

  • Communication

    4...20 mA HART

  • Safety approvals

    SIL 2/3

  • Options

    Display

  • Components

    Isotope: FSG60, FSG61,

    Source container: FQG60, FQG61, FQG62, FQG63, FQG66,

    Mounting accessories: FHG61

  • Measuring principle

    Radiometric Density

  • Characteristic / Application

    Compact transmitter for extreme process conditions (temperature, pressure);

    Non-contact measuring technique

  • Supply / Communication

    2-wire loop powered

  • Ambient temperature

    -40 °C...+80 °C,

    (-40 °F...+176 °F)

  • Process temperature

    Any

  • Process pressure absolute

    Any

  • Wetted parts

    Non-contact

  • Sensor length

    PVT scintillator:

    200 mm...400 mm,

    NAI scintillator:

    50 x 50 mm,

    50 x 100 mm

  • Output

    4...20 mA HART

  • Options

    Display

  • Specialities

    Heartbeat Technology,

    SIL 2/3 according to IEC 61508,

    Bluetooth® commissioning, operation and maintenance with the SmartBlue App

  • Components

    Isotope: FSG60, FSG61,

    Source container: FQG60, FQG61, FQG62, FQG63, FQG66,

    Mounting accessories: FHG61

  • Measuring principle

    Radiometric

  • Characteristic / Application

    Compact transmitter for extreme process conditions (temperature, pressure);

    Non-contact measuring technique

  • Specialities

    Heartbeat Technology,

    SIL 2/3 according to IEC 61508,

    Bluetooth® commissioning, operation and maintenance with the SmartBlue App

  • Supply / Communication

    2-wire loop powered

  • Accuracy

    +/-1%

  • Ambient temperature

    -40 °C...+80 °C,

    (-40 °F...+176 °F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Main wetted parts

    Non-contact

  • Process connection

    Non-contact

  • Sensor length

    PVT scintillator

    400 mm...3000 mm,

    >3000 mm cascade mode

  • Max. measurement distance

    Unlimited measuring range,

    Cascade

  • Communication

    4...20 mA HART

  • Safety approvals

    SIL 2/3

  • Options

    Display

  • Components

    Isotope: FSG60, FSG61,

    Source container: FQG60, FQG61, FQG62, FQG63, FQG66,

    Mounting accessories: FHG61

  • Measuring principle

    Radiometric Limit

  • Characteristic / Application

    Compact transmitter for extreme process conditions (temperature, pressure);

    Non-contact measuring technique

  • Specialities

    Heartbeat Technology,

    SIL 2/3 according to IEC 61508,

    Bluetooth® commissioning, operation and maintenance with the SmartBlue App

  • Supply / Communication

    2-wire loop powered

  • Ambient temperature

    -40 °C...+80 °C,

    (-40 °F...+176 °F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Main wetted parts

    Non-contact

  • Process connection

    Non-contact

  • Sensor length

    PVT scintillator:

    200 mm...400 mm,

    NAI scintillator:

    50 x 50 mm,

    50 x 100 mm

  • Communication

    4...20 mA HART

  • Safety approvals

    SIL 2/3

  • Options

    Display

  • Components

    Isotope: FSG60, FSG61,

    Source container: FQG60, FQG61, FQG62, FQG63, FQG66,

    Mounting accessories: FHG61

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
    • Order code 52028446

      Photomultiplier FMG50, FMG60

      Usage: FMG50, FMG60.

    • Order code 71009287

      Coupling paste,optic.gel 90%/cm silicone

      30ml. Usage: FMG60.

    • Order code 71435116

      Cover, Alu, closed

      Sealing ring, HNBR. Usage: FMG50, FTL41, FTL51B, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Order code 71435118

      Cover, Alu, closed, Ex d

      Sealing ring, HNBR. Usage: FMG50, FTL41, FTL51B, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Order code 71435121

      Cover, Alu, connection compartment, Ex d

      Sealing ring, HNBR. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Order code 71435122

      Cover, 316L, closed, Ex d

      Sealing ring, HNBR. Usage: FMG50, FTL51B, PMD75B/PMD78B, PMC71B, PMP71B.

    • Order code 71435123

      Cover, 316L, sight window, Ex d

      Sealing ring, HNBR. Usage: FMG50, FTL51B, PMD75B/PMD78B, PMC71B, PMP71B.

    • Order code 71435128

      Cover, 316L, connect. compartment, Ex d

      Sealing ring, HNBR. Usage: FMG50, FTL51B, PMD75B/PMD78B, PMC71B, PMP71B.

    • Order code 71435132

      Sealing set HNBR, -40oC, 5 pieces

      Usage: FMG50, FTL41, FTL51B.

    • Order code 71435136

      Cable gland M20, brass nickel plated

      Usage: FMG50, FTL41, FTL51B, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Order code 71435137

      Cable gland M20, 316L

      Usage: FMG50, FTL51B, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Order code 71435138

      Plug M20, brass nickel plated

      Usage: screw-in thread, FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Order code 71439098

      Plug HAN7D, 90degree, IP65

      Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Order code 71435766

      Terminal unit TU100B, 4-20mA

      Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Order code 71435767

      Terminal unit TU101B, 4-20mA, OVP

      Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Order code 71435772

      Basic display VU100A

      Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Order code 71435779

      Basic display + Bluetooth VU101A

      Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Order code 71325082

      Remote display RIA15, non Ex, plastic

      Field housing plastic. Usage: FMG50, FMR20, FMX21.
