Radiometric measuring principle

Animation source containers

Animation Gamma Modulator

  • Source Container FQG62
  • Source Container FQG62
  • Source Container FQG62

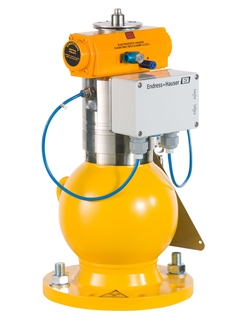

Radiation source container with source holder for manual or pneumatic switch-on/switch-off

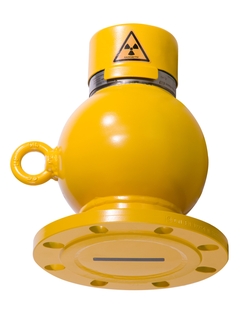

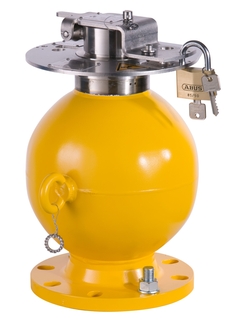

The FQG62 source container is designed to hold the radioactive source during radiometric point level detection, continuous level and density measurement. The radiation is emitted almost unattenuated in one direction only, and is damped in all other directions. This guarantees highest safety for the personnel and a reliable measurement.

  • Benefits

    • High safety level thanks to highest classification for the source supplied (DIN 25426/ISO 2919, typically classification C66646) and safe and easy source replacement

    • Reliable measurement due to lightweight container and almost spherical design which...

  • Field of application

    Designed to hold the radioactive source during radiometric point level detection, continuous level measurement and density measurement. Radiation is emitted almost unattenuated in one direction only, and is damped in all other directions.

    • Activity:...

Features and specifications

Back

Details

  • Measuring principle

    Radiometric Limit

  • Characteristic / Application

    Source container
    Emission angle: 5 degrees
    Approximately 87kg

  • Specialities

    Control area calculation with Applicator

  • Ambient temperature

    -40 °C...+200 °C
    (-40 °F...+392 °F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Main wetted parts

    Non-contact

  • Process connection

    Non-contact

  • Certificates / Approvals

    ATEX, GOST

  • Measuring principle

    Radiometric Limit

  • Characteristic / Application

    Source container
    Emission angle: 5 degrees
    Approximately 87kg

  • Specialities

    Control area calculation with Applicator

  • Ambient temperature

    -40 °C...+200 °C
    (-40 °F...+392 °F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Main wetted parts

    Non-contact

  • Process connection

    Non-contact

  • Certificates / Approvals

    ATEX, GOST

  • Measuring principle

    Radiometric

  • Characteristic / Application

    Source container
    Emission angle: 40 / 20 degrees
    Approximately 87kg

  • Specialities

    Manual or pneumatic switch-on/ switch-off

  • Ambient temperature

    -40 °C...+200 °C
    (-40 °F...+392 °F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Main wetted parts

    Non-contact

  • Process connection

    Non-contact

  • Certificates / Approvals

    ATEX, GOST

  • Measuring principle

    Radiometric

  • Characteristic / Application

    Source container
    Emission angle: 40 / 20 degrees
    Approximately 87kg

  • Specialities

    Control area calculation with Applicator

  • Ambient temperature

    -40 °C...+200 °C
    (-40 °F ...+392 °F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Main wetted parts

    Non-contact

  • Process connection

    Non-contact

  • Certificates / Approvals

    ATEX, GOST

  • Measuring principle

    Radiometric Density

  • Characteristic / Application

    Source container
    Emission angle: 5/ 20/ 40 degrees
    87kg

  • Ambient temperature

    -20 °C...+200 °C

    (-40 °F...+392 °F)

  • Process temperature

    Any

  • Process pressure absolute

    Any

  • Wetted parts

    Non-contact

  • Hygienic

    Non-contact

  • Specialities

    Control area calculation with Applicator

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
  • 22
    • Nr 22 Order code 71301302

      Padlock FQG6x

      With key, simultaneous locking. Usage: FQG61/FQG62/FQG66.

  • 20
    • Order code 52018920

      Key > lock QG020/QG100, FQG6x, 2 pcs.

      Usage: cylinder lock. FQG61/FQG62.

    • Order code 71227681

      Key > lock FQG61/FQG62, 2 pieces

      Usage: cylinder lock, FQG61/FQG62.

  • 31
    • Nr 31 Order code 71308587

      Terminal box FQG61/FQG62

      With fixing screws. Usage: FQG61/FQG62.

    • Order code 71383377

      Setting screw for density, 6x41x15mm

      Knurled screw 6x41x15mm. Material: 1.4404. Usage: FQG61/FQG62.

    • Order code 71383378

      Setting screw for density, M6

      Grub screw ISO4027 M6. Usage: FQG61/FQG62.

    • Order code XPRFID-

      Spare RFID TAG

      Consists of: RFID TAG, fixing wire, crimp sleeve.

    • Order code 71099421

      Set of nameplate FQG6x

      When changing the source. Consists of: 1x label "radioactive". 3x nameplate, blank. Grooved drive stud, seal wire. Usage: FQG60/FQG61/FQG62/FQG63.
