Radiometric
Level and density
Source Container FQG66

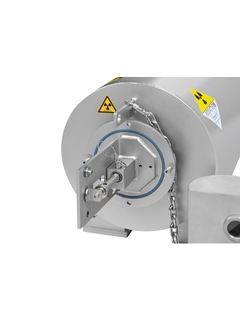

Source Container FQG66 ©Endress+Hauser

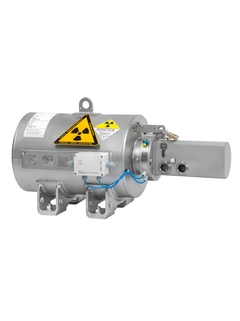

Source Container FQG66 ©Endress+Hauser

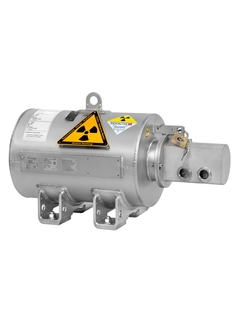

Source Container FQG66 ©Endress+Hauser

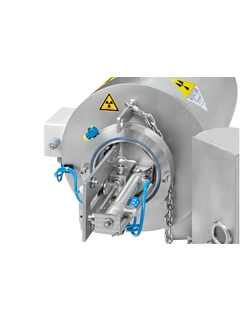

Source Container FQG66 ©Endress+Hauser

Radiometric measuring principle

  • Source Container FQG66
  • Source Container FQG66
  • Source Container FQG66
  • Source Container FQG66

Radiation source container with sliding source support rod for manual or pneumatic on/off switching

The FQG66 source container is designed to hold the radioactive source with highest activities during radiometric point level detection, continuous level and density measurement. The radiation is emitted almost unattenuated in one direction only, and is damped in all other directions. This guarantees highest safety for the personnel and a reliable measurement.

  • Benefits

    • High safety level thanks to highest safety classification for the source supplied
      (DIN 25426/ISO 2919, typically classification C66646) and simple and easy source replacement

    • Extremely high shielding ensures that no control areas are generally required...

  • Field of application

    Encloses the radioactive source used for radiometric point level detection, level and density measurement. Operating with very high sensitivity rod scintillation detectors, provide lowest possible radiation loads in the surrounding.

    • Used if the...

Features and specifications

Back

Details

  • Measuring principle

    Radiometric Limit

  • Characteristic / Application

    Source container

    Emission angle: 5 degrees
    435kg

  • Specialities

    Control area calculation with Applicator

  • Ambient temperature

    -55 °C...+100 °C

    (-67 °F...+212 °F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Main wetted parts

    Non- contact

  • Process connection

    Non- contact

  • Process connection hygienic

    Non- contact

  • Measuring principle

    Radiometric Density

  • Characteristic / Application

    Source container

    Emission angle: 5/ 20 / 40 degrees

    435kg

  • Ambient temperature

    -55 °C...+100 °C

    (-67 °F...+212 °F)

  • Process temperature

    Any

  • Process pressure absolute

    Any

  • Wetted parts

    Non-contact

  • Hygienic

    Non-contact

  • Specialities

    Control area calculation with Applicator

  • Measuring principle

    Radiometric Limit

  • Characteristic / Application

    Source container

    Emission angle: 5 degrees

    Approximately 435 kg

  • Specialities

    Control area calculation with Applicator

  • Ambient temperature

    -55 °C ... +100 °C
    (-67 °F ...+212 °F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Main wetted parts

    Non- contact

  • Process connection

    Non- contact

  • Process connection hygienic

    Non- contact

  • Measuring principle

    Radiometric

  • Characteristic / Application

    Source container

    Emission angle: 40 / 20 degrees

    435kg

  • Specialities

    Control area calculation with Applicator

  • Ambient temperature

    -55 °C...+100 °C
    (-67 °F...+212 °F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Main wetted parts

    Non-contact

  • Process connection

    Non-contact

  • Measuring principle

    Radiometric

  • Characteristic / Application

    Source container
    Emission angle: 40 / 20 degrees
    435kg

  • Specialities

    Sliding source support rod for manual or pneumatic on/ off switching

  • Ambient temperature

    -55 °C...+100 °C
    (-67 °F...+212 °F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Main wetted parts

    Non-contact

  • Process connection

    Non-contact

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
  • 21
    • Nr 21 Order code 71301286

      O-ring cap FQG66, FVMQ

      O-ring 138.0x6.0 FVMQ. Usage: FQG66.

  • 52
    • Nr 52 Order code 71301296

      Slide bearing set FQG66

      Consists of: bearing bush, thrust washer. Usage: FQG66.

  • 53
    • Nr 53 Order code 71341171

      Ball locking bolt FQG66, VA

      Consisting of: Bolt, fixing wire with sleeve. Usage: FQG66.

  • 24
    • Nr 24 Order code 71301299

      Sight glass FQG66, seal

      Material: 1.4305. Window: glas. Flat seal: FVMQ. Usage: hood FQG66.

  • 22
    • Nr 22 Order code 71301302

      Padlock FQG6x

      With key, simultaneous locking. Usage: FQG61/FQG62/FQG66.

  • 23
    • Nr 23 Order code 71301303

      Ventilation screw FQG66, VA, 1piece

      Consists of: ventilation screw 304. Pressure compensation filter. O-ring VMQ, protection lid. Usage: hood FQG66.

  • 33
    • Nr 33 Order code 71099277

      Proximity switch FQG61/FQG62/FQG66

      Usage: FQG61/FQG62/FQG66. Two pieces per instrument are required.

  • 31
    • Order code 916497-0000

      Warning sign: Symbol "Radioactive !"

      Corrosion resistant steel, 304.
