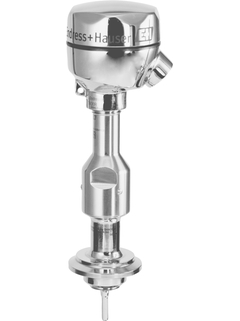

Hygienic thermometer iTHERM TM412 - Imperial version US Style

iTHERM ModuLine TM412
Hygienic modular thermometer

Imperial RTD thermometer with or without thermowell for hygienic applications

TM412
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
Hygienic thermometer iTHERM TM412 - Imperial version US Style
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Accuracy

    class B acc. to IEC 60751
    class A acc. to IEC 60751
    class AA acc. to IEC 60751

  • Response time

    depending on configuration
    iTHERM QuickSens: t90 = 1,5 s
    iTHERM StrongSens: t90 = 9,5 s

  • Max. process pressure (static)

    at 20 °C: 40 bar (580 psi)

  • Operating temperature range

    PT100 WW:
    -200 °C … 600 °C
    (-328 °F … 1.112 °F)
    iTHERM StrongSens:
    -50 °C … 500 °C
    (-58 °F … 932 °F)
    iTHERM QuickSens:
    -50 °C … 200 °C
    (-58 °F … 392 °F)
    PT100 TF:
    -50 °C … 200 °C
    (-58 °F … 392 °F)

  • Max. immersion length on request

    48"

Field of application

It has been designed to meet the requirements of the Food & Beverages and Life Sciences industries and complies with the highest quality standards. It offers a variety of versions within a clearly segmented standard product. The result: Time and cost savings by simple and fast product selection. It offers many technical innovations: iTHERM QuickSens, StrongSens or QuickNeck. This leads to distinctive reduction of maintenance costs, improved product quality, process efficiency and safety.

  • Specially designed for use in hygienic and aseptic applications in the Food & Beverages and Life Sciences industries

  • Measuring range: –200 to +600 °C (–28 to +1 112 °F)

  • Pressure range up to 40 bar (580 psi)

  • Protection class: up to IP69K

Benefits

  • User-friendly and reliable from product selection to maintenance

  • iTHERM inserts: globally unique, fully-automated production. Full traceability and consistently high product quality for reliable measured values

  • iTHERM QuickSens: fastest response times (t90s: 1.5 s) for optimum process control

  • iTHERM StrongSens: unsurpassed vibration resistance (> 60g) for ultimate plant safety

  • iTHERM QuickNeck – cost and time savings thanks to simple, tool-free recalibration

  • iTHERM TA30R: 316L terminal head for easier handling and lower installation and maintenance costs, and with highest IP69K rating

  • International certification: explosion protection e.g. ATEX/IECEx/FM/CSA and in compliance with hygiene standards according to 3-A, EHEDG, ASME BPE, FDA, TSE Certificate of Suitability
