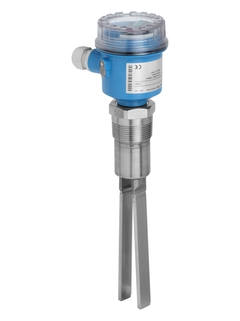

Soliphant FTM50 - Vibronic point level detection

Vibronic
Point level detection
Soliphant FTM50

Robust point level switch for fine-grained bulk solids also for hazardous areas

FTM50
Please Wait (spinning wheel)
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

Specs at a glance

  • Process temperature

    -50°C ... 280°C
    (-60°F ... 540°F)

  • Process pressure / max. overpressure limit

    Vacuum ... 25 bar
    (Vacuum ... 360 psi)

  • Min. density of medium

    Standard fork: 10 g/l
    Short fork: 50 g/l

Field of application

Soliphant FTM50 is a robust point level switch for use in silos containing fine-grained or powdery solids even with a low bulk density. Suitable for a wide range of applications with international certificates for use in dust or gas hazardous areas. Available with polished fork and stainless steel housing with Tri-Clamp or with aluminum housing and coated fork. Maintenance-free device for use in typical applications like: cereals, flour, cocoa, sugar, animal feed, dye powder, chalk.

Point level switch for fine grained solids and powder.

  • Process connections: Threads, flanges and hygienic connection (Tri-Clamp)

  • Temperature: -50 to +280°C (-60 to +540°F)

  • Pressure: -1 to +25bar (-14.5 to +360psi)

  • Sensor length: 145mm, 200mm

  • Sensor material: 316L (3,2µm, 0,8µm, PTFE coated, ETFE coated)

  • International explosion protection certificates

Benefits

  • SIL2 in accordance with IEC 61508

  • No mechanically moved parts, free of maintenance

  • Measurement not affected by build-up or external vibration

  • Various electronic inserts: e.g. NAMUR, relay, thyristor and PFM-signal outputs for optimum alignment with the plant control system

  • Build-up and abrasion display selectable, density setting and switching delay selectable

  • Choice of coated or polished sensor

  • Build-up and corrosion detection
